PE4242
Product Specification
Evaluation Kit
The SPDT Switch Evaluation Kit board was
designed to ease customer evaluation of the
PE4242 SPDT switch. The RF common port is
connected through a 50 ? transmission line to the
top left SMA connector, J1. Port 1 and Port 2 are
connected through 50 ? transmission lines to the
top two SMA connectors on the right side of the
board, J3 and J2, respectively. A through
transmission line connects SMA connectors J4
and J5. This transmission line can be used to
estimate the loss of the PCB over the
environmental conditions being evaluated.
The board is constructed of a two metal layer FR4
material with a total thickness of 0.031”. The
bottom layer provides ground for the RF
transmission lines. The transmission lines were
designed using a coplanar waveguide with ground
plane model using a trace width of 0.0476”, trace
gaps of 0.030”, dielectric thickness of 0.028”,
metal thickness of 0.0021” and ε r of 4.4.
J6 provides a means for controlling DC and digital
inputs to the device. Starting from the lower left
pin, the second pin to the right (J6-3) is connected
to the device V1 or CTRL input. The fourth pin to
the right (J6-7) is connected to the device V2 or

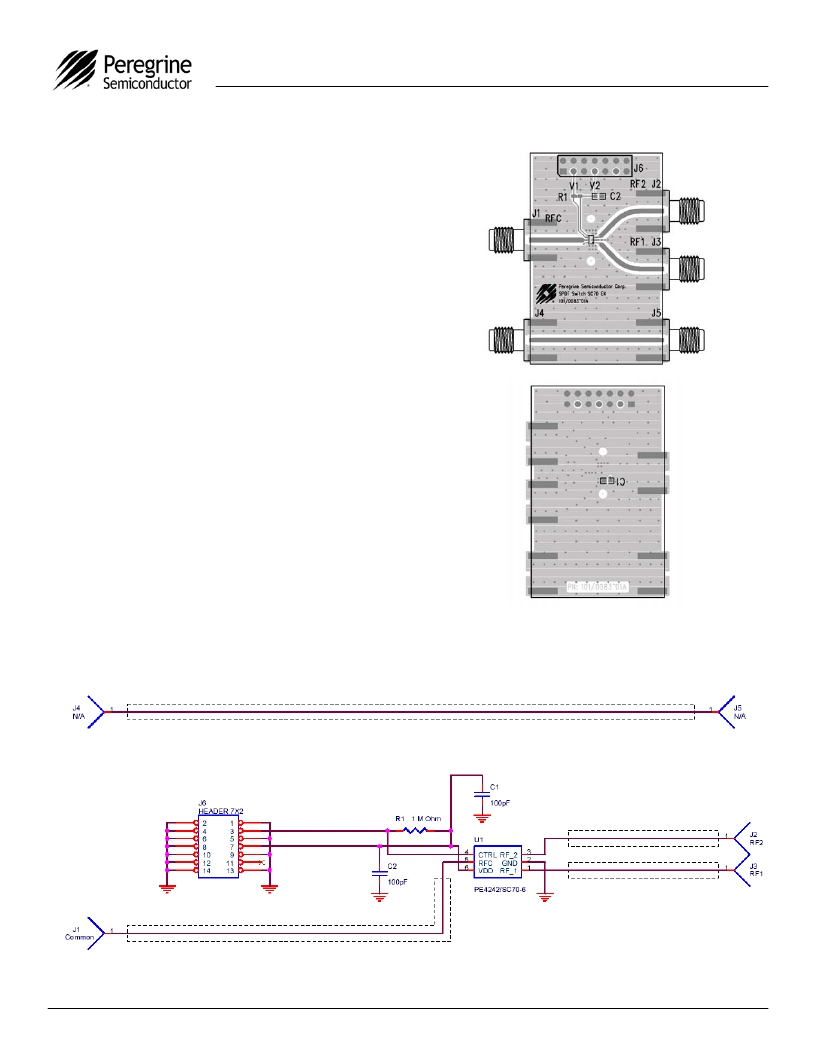

Figure 4. Evaluation Board Layout
101/0083
CTRL /V DD input.
Figure 5. Evaluation Board Schematic
102/0145
?2003-2011 Peregrine Semiconductor Corp. All rights reserved.
Document No. 70-0095-04 │ UltraCMOS? RFIC Solutions
Page 4 of 9
Peregrine products are protected under one or more of the following U.S. Patents: http://patents.psemi.com
